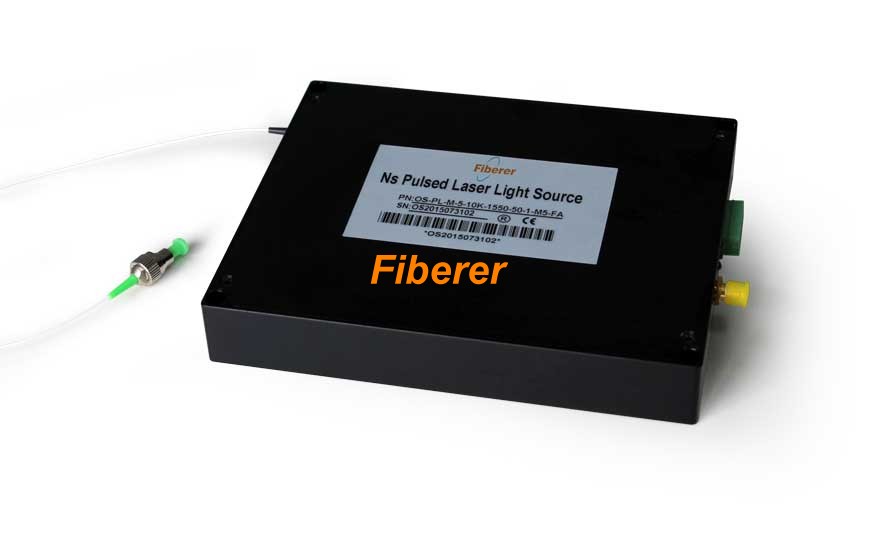

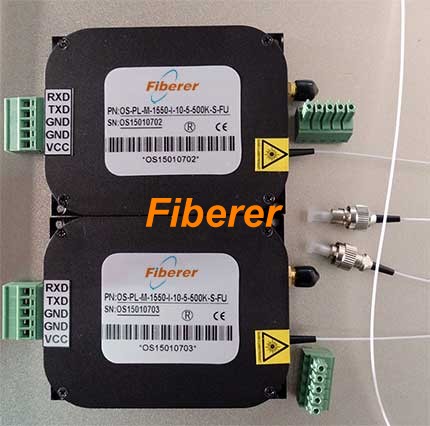

1550nm DFB Pulsed Light Source Module 1 (above)

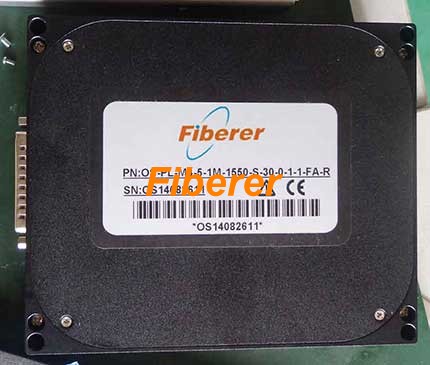

1550nm DFB Pulsed Light Source Module 2 (above)
Description:
Nanosecond (ns) Pulsed Fiber Laser Light Source, central wavelength 405 to 1700nm, peak power 0-50 W (with no amplifier), pulse width 5 to 1000 ns, repetition frequency 20 Hz to 1 MHz, rise and fall time 3-5 ns, optical pulse stability ≤5% (at 25℃). OEM model is well available on customer’s special request.
Applications:
Optical Time Domain Reflectometer (OTDR)
Temperature measurement system of optical fiber
Fiber Optical Sensor System
Laser range finder
Light Detection And Ranging (LiDAR, LADAR)
Features:
Nanosecond pulse output with high-peak power

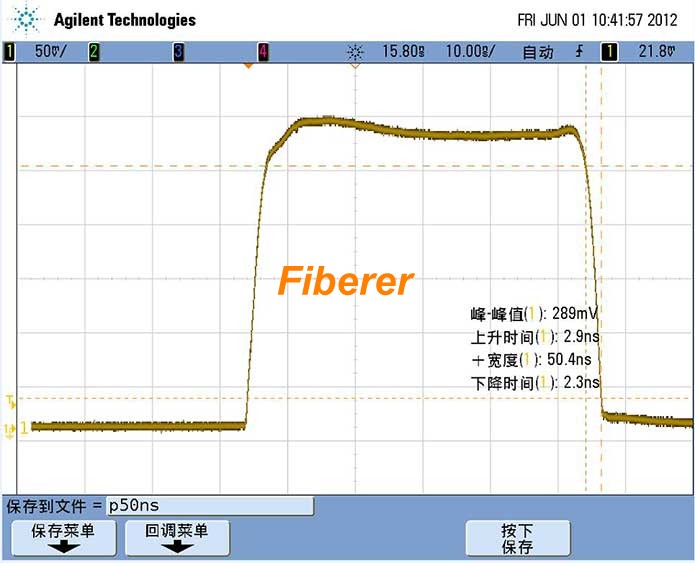

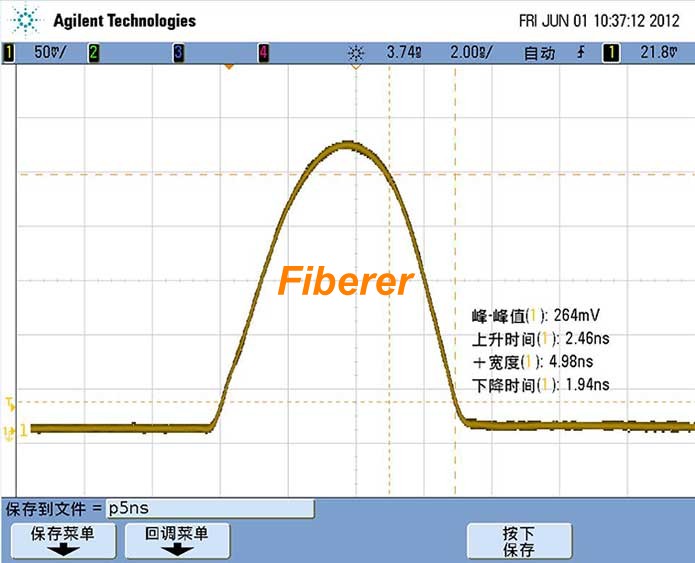

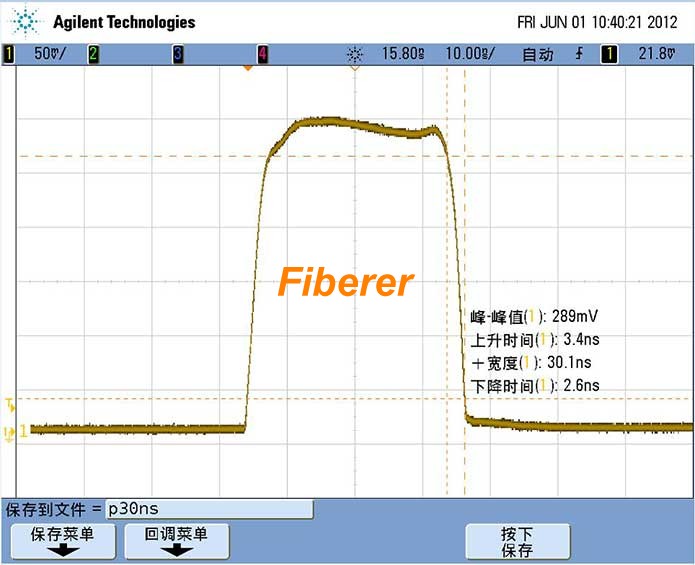

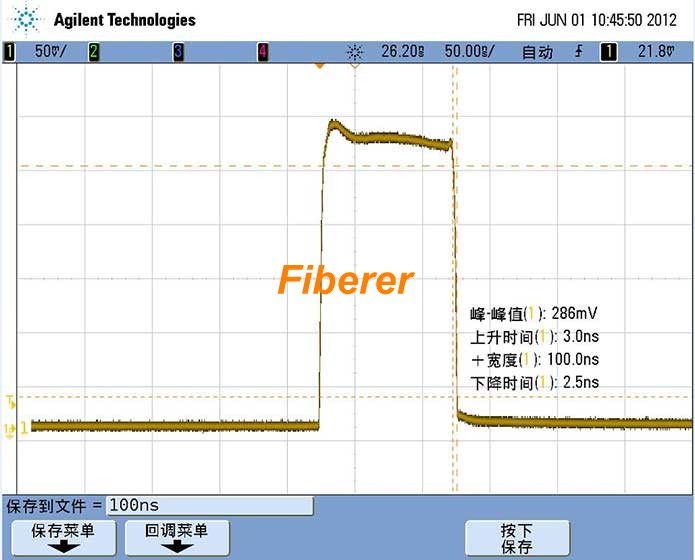

Pulse width 5 ns-1000 ns
Repetition rate 20 Hz-1 MHz
0.5 ns Step-up/down mode with the pulse
Compact size and high stability
Specifications:
|
Parameters |
Min |
Max |
|

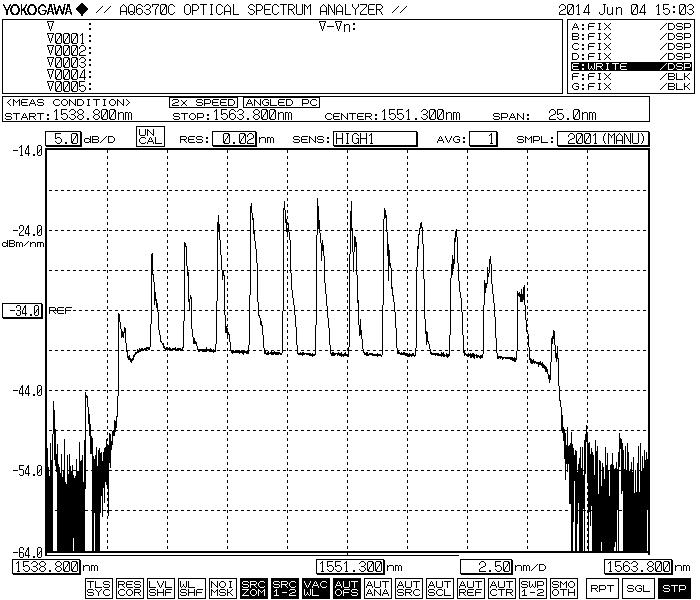

Central wavelength (nm) |
405 |
1700 |
|
Peak power (W) |
0 |
50 (With no amplifier) |
|
Pulse width (ns) |
5 |
1000 |
|
Repetition frequency (Hz) |
20 |
1 M |
|
Rise and fall time (ns) |
3 |
5 |
|
Optical pulse stability (at 25℃) |
≤5% |
|
Serial interfaces |
(SPI /I2C /RS-232) to Host System |
|
External function |
SYNC and EXT TRIG |
|
Power supply |
5V DC / 3A |
|
Operating temperature (℃) |
0 ~ 40 |
|
Storage temperature (℃) |
-20 ~ 70 |
|
Fiber type |
Hi 780 / Hi 1060 / SMF-28e / else |
|
Dimension (L×W×H, mm) |
100×80×22, 150×125×25(Module), 320×220×90(Desk-top), etc |
Ordering Information
|
OS-PL |
Package Type |
Central Wavelength |
Pulse Source |
Peak Power |
Pulse Width |
Repetition Frequency |
Fiber Type |
Connector |
|
|
M=Module
D=Desk-top |
1310=1310nm
1550=1550nm
etc |
E=External input
I=Internal input |
1=1 W
10=10W 50=50 W
etc |
5=5 ns
10=10 ns
100=100 ns
etc |
10=10Hz
10K=10KHz
1M=1MHz
etc |
S=SM Fiber
P=PM Fiber
M=MM Fiber |
FC/UPC FC/APC
etc |
