 Product >> Multimode Light Source >> Multimode VCSEL Light Source
Multimode VCSEL Light Source
Name:

Multimode VCSEL Light Source

Class:
Multimode Light Source
Type:

Multimode VCSEL Light Source Specification


Fiberer Rohs

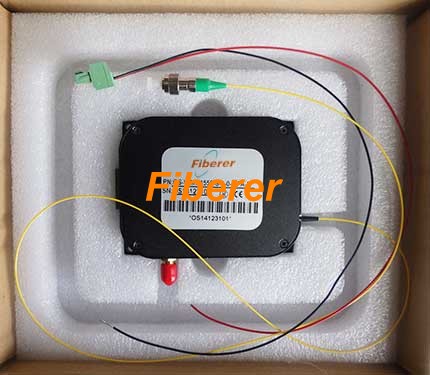

1550nm VCSEL Light Source Module
1550nm VCSEL Light Source Module (above)

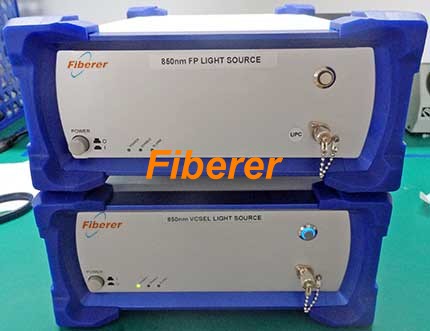

850nm FP and VCSEL Light Source
850nm FP and VCSEL Light Source (above)

Description:
Multimode VCSEL Light Source, Central wavelength 850 nm, 1310nm, 1550 ±20 nm, -3dB spectrum width ≤ 2nm, Output power ≥ 0.5mW. OEM model is well available on customer’s special request.

Applications:
Optical fiber component manufacture & test
Optical communication system test

Features:
High stable output power
High output power
Multimode VCSEL

Specifications:
Parameters
850 multimode
1310 multimode
1550 multimode
Radiation source
850nmVCSEL
1310nmVCSEL
1550nmVCSEL
Central wavelength (nm)
850±10
1310±20
1550±20
-3dB spectrum width (nm)
≤ 2
≤2
≤2
Output power (mW)
≥0.5
≥0.5
≥0.5
Short -term stability
≤±0.02dB/15 min
Long -term stability
≤±0.03dB/8 hour
Fiber pigtail
50/125um or 62.5/125um, multimode fiber, etc
Output connector
FC/PC, FC/UPC or FC/APC, etc
Operating temperature
0℃ ~ 40℃
Storage temperature
-20℃ ~ 70℃
Power supply
AC 110/220V±10%, 50Hz, 20W
Dimensions (L×W×H, mm)
90×70×19(Module); 320×220×90(Desk-top)

Ordering Information
OS-V
Package Type
Operating Wavelength
Output Power
Fiber Type
Connector

M=Module
D=Desk-top
850=850nm
1310=1310nm
1550=1550nm
1315=1310 & 1550nm
 etc
05=0.5mW
1=1mW     10=10mW
 etc
5=50/125um
6=62.5/125um
10=105/125um
etc
FC/UPC     FC/APC
etc




Packaging & Labeling
To protect each of product, Fiberer will use firm and secure Package, and common use Fiberer Label if customer not remark.
It is available to use custmized labeling and packaging for customer request.

Shipment
All shipment will be succssful to arrive customer's address. Fiberer try our best to let the shipment fast for customers, and the common express is by air of Fedex, DHL, UPS, EMS and TNT.
If the customer pay Fiberer the shipment charge, it will use Fiberer express account for the shipment, otherwise it need to use the customer's express account.

Customized & OEM
Fiberer always do Customized for customer's request successfully, It is available for Customized & OEM.


Quality Assurance:  assure 100% best quality.
(Fiberer assure 100% best quality.the term will be signed on order and invoice,match the safety of international business law.)    Customer Reviews
